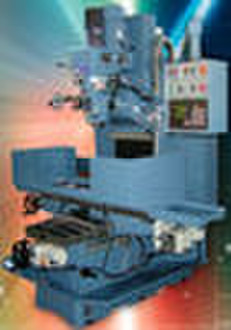

BED TYPE MILLING MACHINE

SMARTECH BED TYPE MILLING MACHINE CHARACTERISTICS:1) High-grade casting; 2) X & Y axis gear type power feed system; 3) Z axis rapid power elevating system; 4) Electric central auto lubrication; 5) Higher table load capacity and milling precision STANDARD ACCESSORIES:1 Pneumatic power draw bar system; 2 Y axis telescopic protection cover; 3 Z axis chip protection cover; 4 Extension table on each end of working table; 5 Sub-support slide ways for the saddle (for BM-2254); 6 Coolant system; 7 Central auto lubrication system; 8 Built-in 3 axis digital read out system; 9 Compact control panel; 10 X & Y axis gear type power feed system; 11 Z axis rapid power elevating system; 12 Working lamp; 13 Base pan, side guard and table splash guard; 14 Ball screws on 3 axis. OPTIONAL ACCESSORIES:1 Collect chuck sets 2 X/Y/Z axis A/C servo motor infinity feed system 3 Machine vise 4 Clamping kit set SPECIFICATIONS: MODELBM-2040S/V/FBM-2254S/V/FSlide ways StructureY/Z: , X:X/Y/Z:Table Size (mm)1370X4001570X400TravelX (mm)10001370Y508550Z700Quill127Quill Diameter (mm)105Quill Feed Rate (mm)0.04/0.08/0.15Spindle Motor (kw)3.75KW(5HP), optional 5KW(7.5HP)Spindle TaperNT40Spindle SpeedS (rpm)10 Steps: 60-3600VVariable: 50-3750FInfinity: 50-5000 (by inverter motor)Head Tilt AngleR&L ±90°Dist. Table-Spindle(mm)0-700Dist. Column-Spindle (mm)508Machine Weight (kgs)30003900Dimension (LXWXH cm)223X188X240243X193X140
